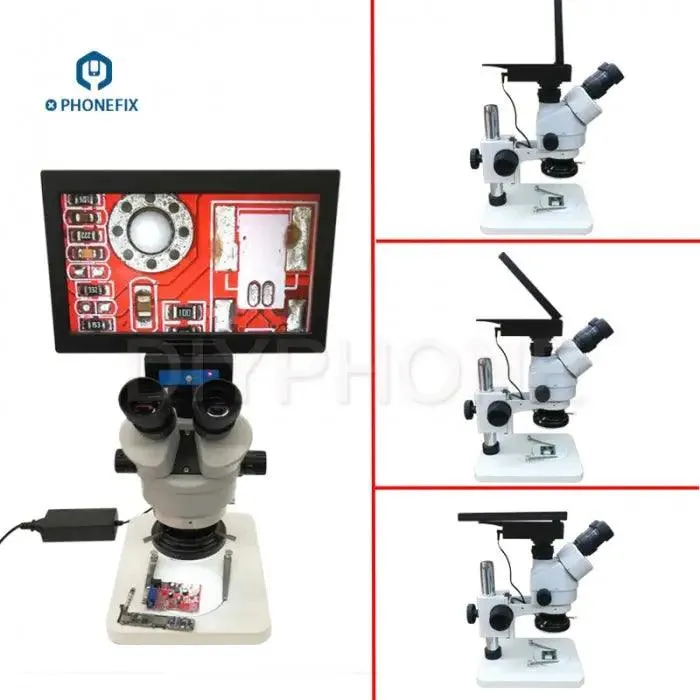

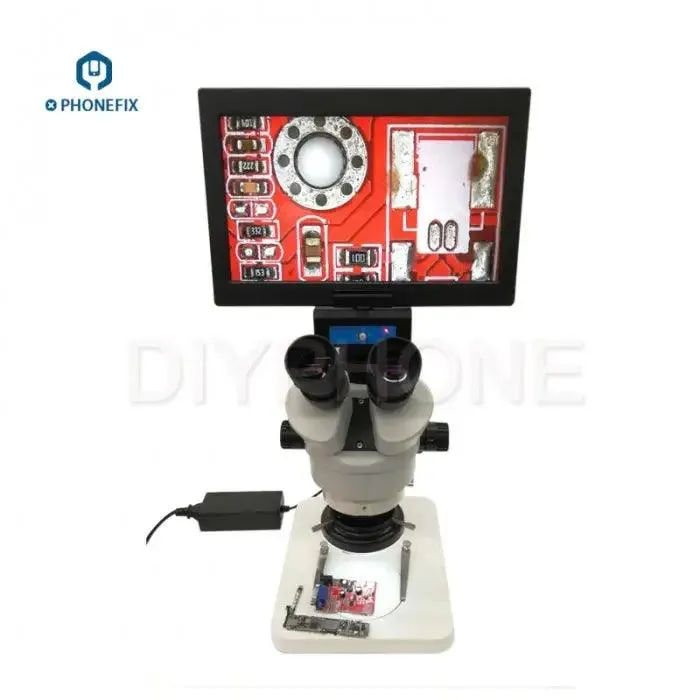

Fool-style 0.7-4.5X Integrated Trinocular Stereo Microscope with Display Screen HDMI output USB2.0 output interface
0.7-4.5X Trinocular Integrated Microscope has the HDMI output USB2.0 output interface, All-In-One Portable optical magnification for phone logic board repair with 0.4X camera interface eyepiece. Continuous zoom adjustable range is ±5 diopters trinocular spectroscopy imaging
Product Parameters :

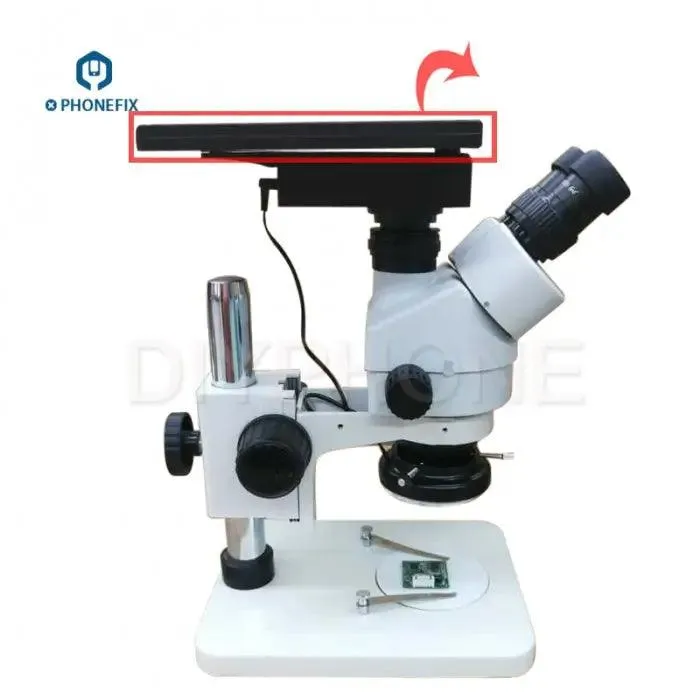

- Display: 10.6 inch IPS full-angle display, can be rotated 270°, left and right, can be folded 180°, back and forth
- Digital Camera: 1/2.8 inch, 2 million pixels
- Image Resolution: 1920*1080
- Frame Rate: 45 frames/second

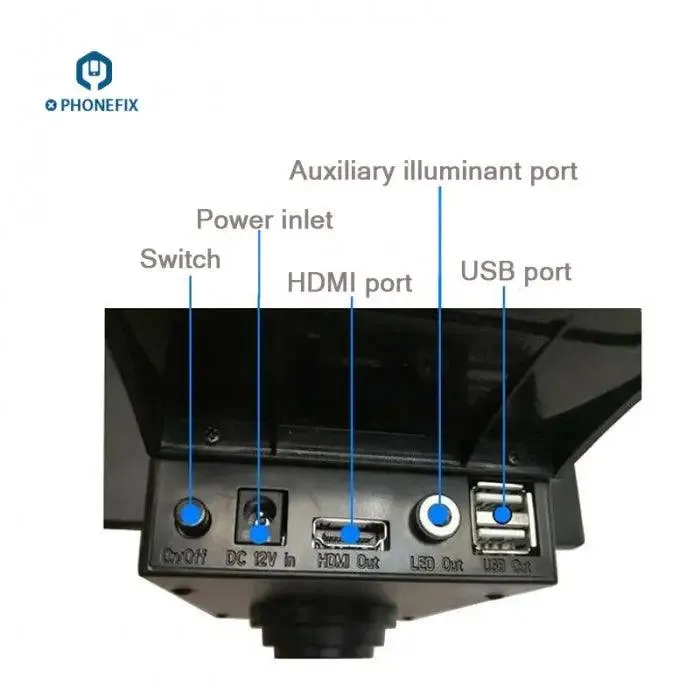

- Output interface: HDMI output USB2.0 output
- Optical Magnification: 7-45X
- Electronic Magnification: 13-104 (standard 10.6 inch) 20-245X (21 inch) Max 1000X
- Camera Interface Eyepiece: 0.4X (large viewing angle, no vignetting)
- Observation Head: inclined at 45, and the viewing binocular observation head can make 360, the adjustment range of interpupillary distance: 54-76mm, both eyepiecestalk visibility can be adjusted, and adjustable range is ±5 diopters, trinocular spectroscopy imaging
- Continuous Zoom: 1 : 6.5
- Eyepiece: wide field, high-point eyepiece WF10X20, it can observe image of observation specimen with glasses
- Working Distance: Standard working distance 100mm, but extended range of working distance is 30mm-265mm with auxiliary objectives
- Auxiliary illuminant: 72 high-brightness ∮5mm LED lamp beads, brightness can be adjusted
- Bracket: optional flat bracket, base with tablet and φ? 95mm black and white work board
- Column Height: 240mm
- Column Diameter: 32mm
- Base Size: 200×255×22mm
Menu Functions: Chinese and English OSD menu, brightness, sharpness, color saturation, auto exposure, monochrome, wide dynamic, auto white balance, one-key white balance, red, green, blue, default, Chinese and English, vertical mirroring, horizontal mirroring, negative film, contrast on the same screen, line group, 8 vertical lines, 8 Horizontal lines , Line colors, Line widths

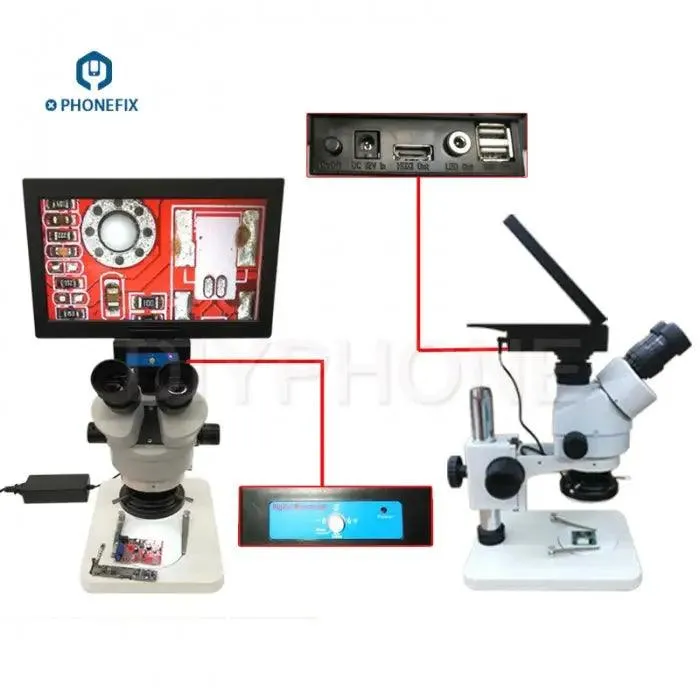

External devices: Computer (camera, video) display (different sizes are available), can be observed and synchronize in time
Optional Eyepiece: WF15X15mm, WF20X10mm, WF25X9mm, WF30X8mm
Optional Accessory Objective: 0.3X.0.5X.0.75X.1X.1.5X.2.0X
